Wildlife Mitigation

The KE1297-01 is a multiple piece kit that is easily installed in the field.

Unique design slides together, interlocks and is secured with fasteners to provide complete solution.

‍

PROVIDES SIMPLE AND COMPLETE COVER UP SOLUTION
VENT COVER ALSO AVAILABLE (KE1055-01)
ELIMINATES ANIMAL CONTACT
IEEE 1656 & ASTM TESTED
V-0 FLAMMABILITY CLASSIFICATION
UV RESISTANT

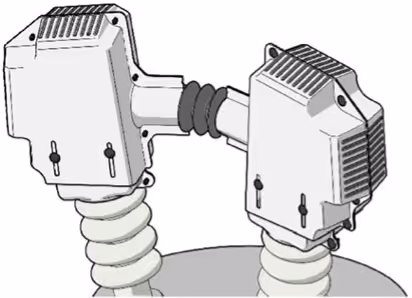

UNIVERSAL TO FIT G&W VIPER, ELASTIMOLD AND NOJA HIGH VOLTAGE RECLOSER BUSHINGS
HINGED DESIGN FOR EASE OF INSTALLATION
WEEP HOLES TO ENSURE WATER WILL DRAIN
FINGERED EGRESS DETAIL ALLOWS FOR VARIOUS CONDUCTOR ANGLES
IEEE 1656 & ASTM TESTED
V-0 FLAMMABILITY CLASSIFICATION
UV RESISTANT

‍

DESIGNED TO FIT ALL COMPONENTS ON RECLOSERS AND MORE
UNIVERSAL TO FIT DISTRIBUTION LIGHTNING ARRESTERS, SENSORS, COMPACITOR BANK OIL SWITCHES, AND TRANSFORMER BUSHINGS
FINGERED EGRESS DETAIL ALLOWS FOR VARIOUS CONDUCTOR ANGLES
ONE PIECE ASSEMBLY FOR EASE OF INSTALLATION
IEEE 1656 & ASTM TESTED
V-0 FLAMMABILITY CLASSIFICATION
UV RESISTANT
MATERIAL RATED UP TO 72KV

‍

FITS LARGE DIAMETER BUSHING SHEDS FROM 4.5" TO 8.75" DIA
REMOVABLE TAB TO ACCOMODATE BUSHINGS WITH SENSOR ATTACHED
WEEP HOLES TO ENSURE WATER WILL DRAIN
IEEE 1656 & ASTM TESTED
V-0 FLAMMABILITY CLASSIFICATION

‍

• Mitigates wildlife contact for prevention of power outages
• IEEE 1656 & ASTM Tested
• V-0 Flammability Classification
• UV Protected
• Fingered egress detail allows for various conductor angles
• Easily installed and Reusable for routine maintenance
• Covers most overhead distribution voltage lightning arresters

Kaddas BirdguarDTM is the innovator of raptor protection and industry leader for Wildlife Caused Power OutageProtection. We’re proud partners with many international groups and Power Utility companies, sharing a commongoal of realizing uninterrupted service, associated cost savings and reliability.

Avian Protection Plan (APP)—
Your Total Wildlife Outage Protection Solution

An Avian Protection Plan (APP) is a utility-specific document
that outlines a program designed to reduce the operational
and avian risks that result from wildlife interactions with electricutility facilities ~ Substation, Distribution & Transmission. KaddasBirdguarDTM collaborates with Utility Companies to consult, trainand implement APP using the industry’s most comprehensive lineof products ~ including custom designs.

Material Testing Information:

Kaddas’ proprietary blend material has been tested and meetsmultiple IEEE STD 1656, 2010 and ASTM standards for materialperformances relating to light exposure and weathering.

Weathering and Aging: ASTM 5,000 hours simulated Weatheringand Aging.

Designed to lock over the first skirt. Fits a wide variety of bushings without interfering with hardware functionality. HotStick or gloved installation applications available.

‍

Designed to fit over the connection and exposed metal without interfering with the operation of the switch. HotStick or gloved installation applications available.

‍

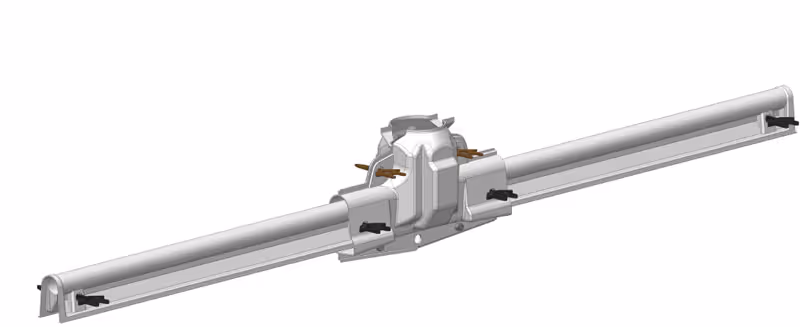

Designed to discourage raptors from perching on cross-arms between phases. HotStick and gloved applications available.

‍

Designed to discourage birds and small animals from perching on the top of poles. Deflects harsh weather conditions to prevent deterioration, extending the life of poles. Available in two styles; Flat Base or Flanged

‍

AVIX Autonomic is a fully automated laser bird repellent that keeps birds away 24/7. Birds perceive the moving laser light as a physical threat and flee immediately when the beam passes by. This solution is proven to reduce bird nuisance by more than 70%. Bird habituation doesn’t occur. The system can be programmed and monitored through an iOS and Android apps.

Our handheld lasers are highly effective in deterring birds directly. You project the laser toward birds, they perceive it as a physical threat and flee immediately.
