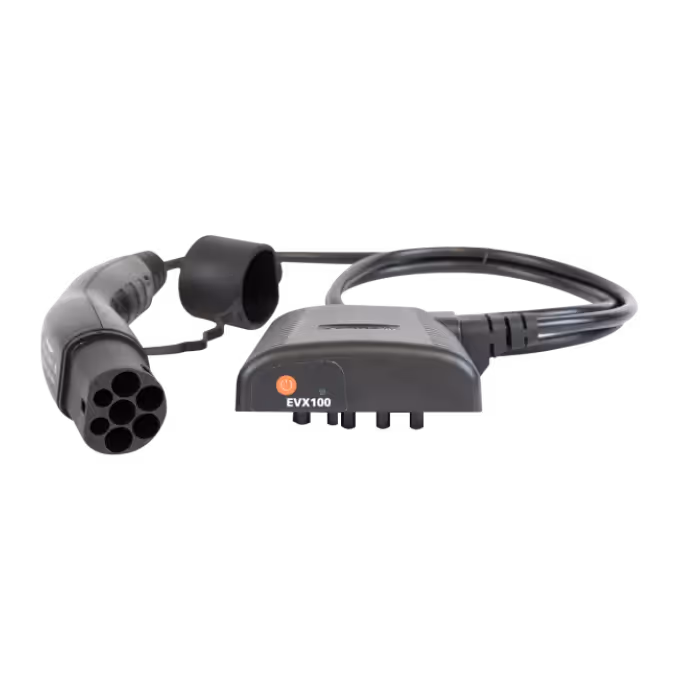

Compact direct-connected adapter for testing Mode 3 electric vehicle charge points.

Fast, convenient automated testing for electric vehicle charge points in line with country specific and generic requirements.

Used with Megger MFT-X1 multifunction installation testers, the EVX100 adaptor provides all the functions needed for automated and manual testing of single- and three-phase Mode 3 electric vehicle charge points rated at up to 22 kW. Unlike other adaptors, the EVX100 mounts directly onto the MFT, which means it provides a fully integrated solution that doesn’t need inconvenient interconnecting cables.

Another unique benefit is that the EVX100 is directly controlled by the MFT-X1, which makes it easier and faster to use. In addition, direct control reduces the possibility of making incorrect test selections. The EVX100 also confirms that the mode set on the charger is correct for the test being performed.

To make testing even more convenient, the EVX100 offers automated testing, which means that you will no longer have to manually cycle the charge point through numerous CP states every time a test trips a protective device such as an RCD or RDC. As protective devices are often fitted in locations at a considerable distance from the charge point, this feature can potentially save a lot of walking and valuable time.

The EVX100 is powered by a high capacity internal battery, which can be recharged quickly via a standard USB-C charging port. This means you won’t need mains cables with various types of plugs. Just two charger connectors – Type 1 and Type 2 – will almost certainly cover all of your testing requirements, with type 2 supplied as standard. And, if you’re a user of CertSuite Installation software, you can produce customised test certificates in real-time with just a couple of clicks.

‍

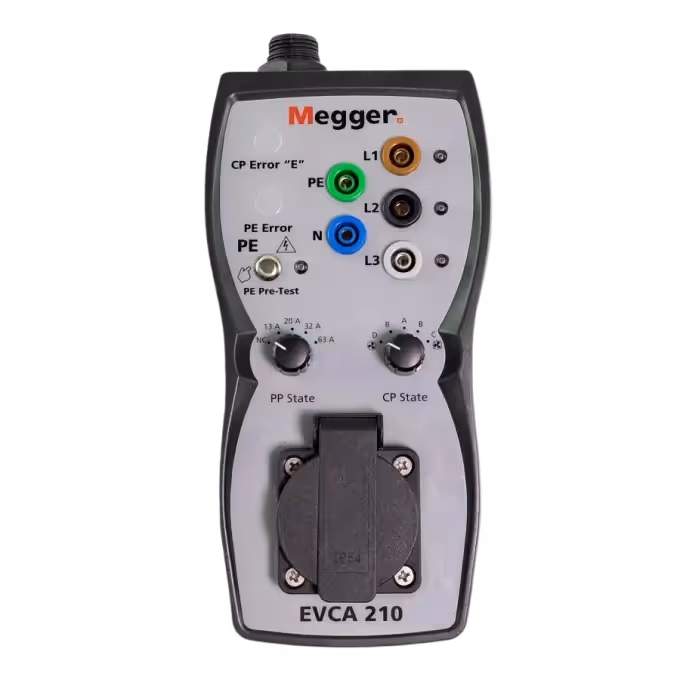

The EVCA210 Electric vehicle charge-point adaptor is a compact, easy-to-use adapter designed to perform all the functions required by the electrical contractor to fully test Mode 3 AC Electric Vehicle Charge-points. Specially designed to comply with UK, European, and other international wiring regulations and standards, the EVCA210 may be used on all single- and three-phase electric vehicle charge points with appropriate connectors.

The EVCA210 is designed to test the function and safety of a charging point. The adapters allow you to conduct tests using appropriate single or multifunction test instruments on EV charging points in accordance with IEC/EN 61851-1 and IEC/HD 60364-7-722. Charging points should be tested as part of the initial installation and repeated periodically.

The Megger EVCA210/EVCA210-UK test adaptors are designed to simulate the connection of an electrical vehicle to the charging point under test. Connection of the adapter enables the operator to trigger the charging process by selecting the appropriate Proximity Pilot (PP) and Control Pilot (CP) states. Test instruments can be connected using either the front mounted mains socket or the 4 mm connection ports L1, L2, L3, N, PE. Two additional CP signal terminals give the operator the ability to measure the CP signal using an oscilloscope.

In addition, the adapters have a manual PE Pre-Test feature that allows the user to test for dangerous voltages present on the PE, prior to any other testing of the charge point. If this test fails, testing must cease as potentially dangerous voltages may be present on the PE and faults must be investigated and rectified before continuing.

‍

• Type 2 Charging Plug for charging points with panel mounted socket outlet or fixed cable with vehicle connector
• Type 1 Charging Plug for charging points with fixed cable and vehicle connector
• (Example Mitsubishi PHEV) – option for the EVCA210/standard on the EVCA21
• CAT II 300 V rated
• Comes with carrying case
• Complies with Low Voltage Directive LVD 2014/35

‍

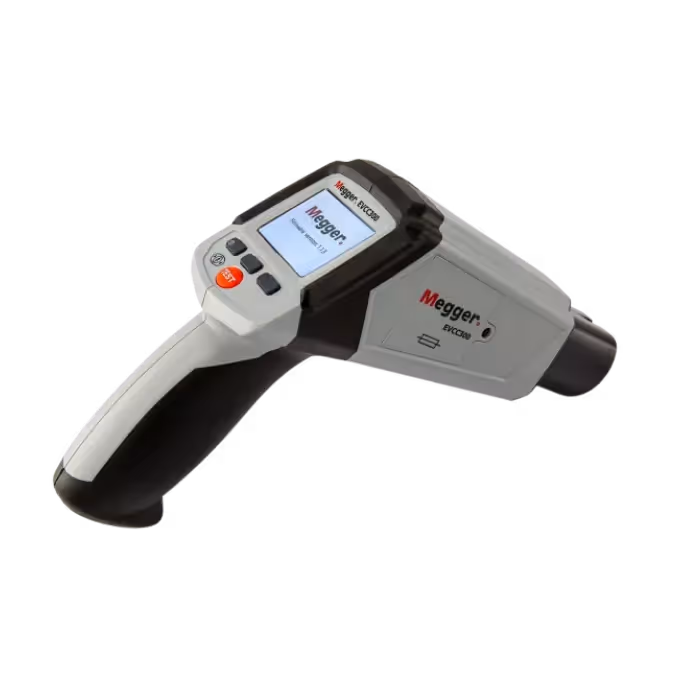

A simple all in one concept provides an easy to use solution to check both the safety and operation of mode 2 and single phase mode 3 EV chargers.

The new EVCC300 introduces a new and convenient way of checking electric vehicle (EV) charge points. A simple all in one concept provides an easy to use solution to check both the safety and operation of mode 2 and single phase mode 3 (level 1 and two phase level 2) EV chargers. The instrument is ideal for those wishing to perform a fault finding check on an EV charger following manufacture or repair, or just part of a maintenance schedule/inspection.

NOTE: This product is a checking device that can be used to check the safety and operation of EV charger points. It is not intended to be used to certify installations. For installation inspection and certification please see the EVCA210 test adaptor.

‍

• Checks mode 2 and single-phase mode 3 (level 1 and two phase level 2) chargers
• Checks chargers with SAE J1772 Type 1 and Type 2 connectors
• Performs four EV charger safety checks
• Performs four EV charger operation checks
• Checks to see if nuisance tripping or RCD/GFCI is likely to occur
• Reads control pilot state response from EV Charger to IEC61852-1

‍

The UK designed and built MFT-X1, introduces the first generation of platform based Multifunction electrical installation testers to the Megger MFT range.

Rated to CATIV 300 V, the MFT-X1 is designed for use on all single or 3-phase domestic, commercial and industrial electrical installations. The range of individual tests allow the user to complete all the electrical commissioning, routine maintenance and reporting/certification requirements for an installation, as well as aid detailed fault diagnostics.

• True LoopTM test with patented Confidence MeterTM
• CertSuiteTM compatible Bluetooth® result transfer
• Next generation 2-wire and 3-wire non-trip loop testing
• User upgradeable operating system
• High resolution 0.001Ω loop test
• Automatic volt-drop measurement
• Stabilised insulation test voltage
• Configurable RCD and EV auto-sequence tests
• Fast switch rechargeable plug-in battery pack
• Full colour TFT bonded display
• Re-designed lead set and carry case solution
• IP54 operational housing

‍

New interface

Not only have we redesigned the physical interface of the product for ease of use, we've created a more intuitive working experience. Enhancing the colour coded test selection rotary dial, range selection is now replicated on the instrument screen, ensuring easy use in poor lighting environments.

Reporting

Save yourself hours of operational work by combining the MFTX1 with Certsuite™, which makes reporting and certificating whilst on the job a breeze! Test results can be transferred directly to any test certificate or report via the CertSuite™ App.

Upgrades

The MFT-X1 is just the start! Using a standard microSD card, you will be able to remotely upgrade firmware and other features without having to purchase a new unit.

True Loop™

True Loop™ impedance testing is now a standard feature on the MFT-X1. The latest 3-wire non-trip loop testing technology, incorporated with the patented Confidence Meter™, offers an unmatched, reliable, accurate, stable and repeatable loop test solution.

High resolution

The MFT-X1 now includes a high resolution, high current, 2-wire loop impedance test that, with the integration of the Confidence Meter™, provides accurate measurements down to 0.001Ω resolution, with PFC/PSCC current calculation up to 50 kA.

Stabilised insulation

For the first time in any multifunction tester, the MFT-X1 incorporates a stabilised insulation test voltage, ensuring output voltage is accurate to within +/-3% +2 digits. This compares to the industry standard of +20%.

With new battery release technology we've made it easier than ever to swap between battery units, meaning you'll never have to wait for a charge.
