The Megger insulation testers will take the bashing that testers receive when they are on site

They are rubber armoured and have an integral solid lid to cover the display. The lid has a heavy-duty hinge that locks away underneath when in use, making it easy to use and impossible to lose. And you don’t need to pull out the test leads to shut the lid.

The Megger MIT insulation testers are easy to use and quick to learn

There are no buried functions, so it is easy to use these new insulation testers. The colour coding helps test selection, speeding up testing time and helping you identify faults fast. The quick start guide in the lid keeps all the basic information at hand if you need it

Your safety is Meggers number one concern. These safety features look after you and the tester

• Safety interlock to prevent unsafe connection of the test leads
• Safe contact detector keeping you and your tester safe during continuity testing if it’s accidentally connected to a live circuit
• Live voltage warning alerts the user to a circuit voltage over 25 V when insulation testing
• Safety lockouts
  • Prevents continuity testing on live circuits
  • Prevents insulation testing when circuit voltage is greater than 50 V

Hands free operation

MIT300 series insulation testers are well balanced to hang comfortably around your neck enabling hands free operation when you need it. The continuity test and buzzer start automatically when you connect to a circuit, saving you time. Insulation tests can be started using a switched probe or the test button on the front of the tester.

‍

• Extremely easy to use
• Tough rubber armoured case
• Self contained protective cover

‍

The MIT400 mk2 series insulation and continuity testers are designed not just for Electrical and Industrial, but with an exceptionally wide range of applications from electrical installations, cable testing, motor testing, automotive, ESD, panel building, avionics, maintenance etc.

Insulation testing has been enhanced with feedback controlled test voltages to limit over-voltage to 2%, rather than the industry standard 10-20%.

A variable range has been added to allow any intermediate voltage from 50 V to 1000 V in 10 V steps, where application specific test voltages are required that do not appear in the standard ranges.

Continuity testing is now significantly faster, and a single auto-ranging 0.01 Ω to 1.0 MΩ function replaces the “ohms” and “kOhms” ranges. Retained are the 200 mA and 20 mA test options.

Replacing the original MIT400 instruments the new units feature a redesigned case, back-stand, and 6 cell battery compartment with separate fuse access. All instruments are over-moulded for increased protection and achieve an IP54 weatherproof rating.

The range consists of four instruments:
MIT400/2            250 V, 500 V and 1000 V
MIT410/2            50 V, 100 V, 250 V, 500 V and 1000 V + Polarisation Index, Dielectric Absorption Ratio
MIT420/2            50 V, 100 V, 250 V, 500 V and 1000 V + Polarisation Index, Dielectric Absorption Ratio, Variable Test Voltage and result storage
MIT430/2            50 V, 100 V, 250 V, 500 V and 1000 V +Polarisation Index, Dielectric Absorption Ratio, Variable Test Voltage and Bluetooth download

‍

• Insulation testing up to 1000 V and 200 GΩ range
• Stabilised insulation test voltage (New)
• Single range, faster continuity testing from 0.01 Ω to 1 MΩ (New)
• 600 V Trms AC and DC voltage measurement
• Live circuit detection and protection

‍

A versatile handheld multi-testing instrument with more than 13 distinctive testing features

Get a unique instrument capable of testing resistance, continuity, and insulation resistance in systems, combining the two, three and four-terminal methods

The IMT100 industrial multi-tester is a versatile instrument with a complete suite of insulation and low resistance testing capabilities, plus continuity, inductance, capacitance, voltage, and temperature measurements.

Additionally, the instrument can test insulation resistance from 100 Ω up to 200 GΩ, with test voltages of 50 V, 250 V, 500 V, 1 kV, and selectable variable voltage.  The instrument includes a guard terminal, and supports several diagnostic insulation resistance functions including spot reading, polarisation index ratio, and timed insulation testing.

The IMT100 comes with a unique four-wire digital low resistance function that includes a stable power supply that can deliver 200 mA in long circuits with a resistance range from 1 mΩ up to 10 Ω. This unit offers different test modes selectable through a soft keypad, including bidirectional, unidirectional, automatic, and continuous. The rotary switch and soft keypads are easy to operate, with or without gloved hands, and the instrument’s full colour graphic display makes it easy to select functions and take readings.

The unit also has a supplied thermocouple (CAT III to 600 V) that enables you to test temperature and insulation resistance compensation.

What’s more, the LRC function allows the IMT100 to automatically determine if the main element of the load is inductive, capacitive, or resistive, and displays the result on screen. It also gives you the ability to select each function and frequency to 120 Hz or 1000 Hz.

The IMT100 comes with data storage management for up to 256 test results with individual tag names and dates. These can be downloaded to a USB drive and are also accessible within the instrument via a dedicated colour-guided recalling test results dashboard.

This instrument is designed to be exceptionally safe to use. The fast-detecting circuitry reduces the likelihood of damage to the instrument if accidentally connected to live circuits or across phases.

Occasional software updates may be issued on the Megger website, and the instrument can be updated by simply connecting a USB drive to the IMT100 with the firmware update file in the root directory. The IMT100 will start the update process automatically.

‍

• Full colour graphic display
• DC voltage and polarity test
• AC voltage, phase rotation and frequency
• Insulation resistance and surface leakage current detection
• 4 wire low resistance bonding test
• 2 wire continuity and diode test

‍

The MTR105 is a dedicated Static Motor Tester with Megger’s tried and trusted suite of insulation resistance tests (IR), plus all the great traditional features and reliability of Megger’s testers.

The MTR105 takes the test abilities of Megger’s proven IR test instruments adding DLRO four wire Kelvin low resistance test, inductance and capacitance tests to provide a versatile motor tester, all packaged in a robust hand held instrument, which up to now has simply not been available.

Additionally the MTR105 incorporates temperature measurement and compensation (for IR tests), motor direction of rotation plus supply phase rotation tests.

These new test abilities make the MTR105 a real world, versatile, hand held motor test instrument.

‍

• Full colour graphic display
• 3 Phase insulation resistance
• Temperature correction for insulation resistance
• Guard terminal
• DLRO four wire Kelvin

‍

The MIT2500 insulation and continuity tester has been designed for motor and cable testing, specialist applications and electrical testing  applications, where operation voltages exceed 1000 V and higher insulation test voltages are needed.

The MIT2500 offers both fixed range voltages of 50 V, 100V, 250 V, 500 V, 1000 V and 2500 V, as well as a variable range that allows any voltage between 50 V and 2500 V to be “dialled in”. This is supported by the new test voltage feedback control, which maintains the output test voltage to within 2% of the selected range, even when under test.

• Insulation testing up to 2.5 kV  and 200 GΩ range in a hand held instrument
• Guard terminal for high resistance accuracy
• Adjustable insulation test voltage from 50 V to 2500 V
• Stabilised insulation test voltage

The Cat IV- rated MIT515 is the simplest of Megger's new range of small light 5 kV insulation resistance testers for the testing and maintenance of high voltage electrical equipment and rotating plant. The tough case is small and lighter than its predecessor making it easy to carry and store.

Now equipped with lithium ion fast rechargeable batteries, the instrument has a large, clear, easy to read, display making it equally suitable for use in both bright sunlight and poorly lit environments. Information displayed includes resistance, voltage, leakage current, capacitance, battery status and time constant. In addition, the elapsed time of the test is displayed constantly removing the need for separate timer.

• Measures up to 10 TΩ
• Selectable test voltage from 250 to 5000 V
• PI, DAR, DD test

Our flagship model taking the NZ market by storm, the sharply-priced MIT525 is a stunning and fully-featured compact, light 5 kV insulation resistance tester for the diagnostic testing and maintenance of high voltage electrical equipment. As well as measuring insulation resistance to 10 TΩ, the Cat IV-rated MIT525 also offers various diagnostic tests such as Polarisation index, Dielectric Absorption Ratio, Step Voltage, Dielectric discharge and ramp testing. True of all models in this range, its superb noise immunity offers contractors the highest levels of confidence in the harshest of substation electrical environments.

Now equipped with lithium ion fast rechargeable batteries, the instrument has a large, clear, easy to read, display making it equally suitable for use in both bright sunlight and poorly lit environments. Information displayed includes resistance, voltage, leakage current, capacitance, battery status and time constant. In addition, the elapsed time of the test is displayed constantly removing the need for separate timer.

• Measures up to 10 TΩ
• PI, DAR, DD, SV and ramp test
• Improved productivity – operate from line power/mains if battery dead

A popular unit with the specialist HV contractor, the MIT1025 is compact, light 10 kV insulation resistance tester for the diagnostic testing and maintenance of high voltage electrical equipment. As well as measuring insulation resistance to 20 TΩ, the MIT1025 also offers various diagnostic tests such as Polarisation index, Dielectric Absorption Ratio, Step Voltage, Dielectric discharge and ramp testing.

Now equipped with lithium ion fast rechargeable batteries, the instrument has a large, clear, easy to read, display making it equally suitable for use in both bright sunlight and poorly lit environments. Information displayed includes resistance, voltage, leakage current, capacitance, battery status and time constant. In addition, the elapsed time of the test is displayed constantly removing the need for separate timer.

• Measures up to 20 TΩ
• PI, DAR, DD, SV and ramp test
• Improved productivity – operate from line power/mains if battery dead

Offering CAT IV safety, the MIT1525 is compact, light 15 kV insulation resistance tester for the diagnostic testing and maintenance of high voltage electrical equipment. It benefits from the Megger dual case construction, Tough on the outside and fire retardant on the inside.

As well as measuring insulation resistance to 30 TΩ, the MIT1525 also offers various diagnostic tests such as Polarisation index, Dielectric Absorption Ratio, Step Voltage, Dielectric discharge and ramp testing.

Now equipped with lithium ion fast rechargeable batteries, the instrument has a large, clear, easy to read, display making it equally suitable for use in both bright sunlight and poorly lit environments. Information displayed includes resistance, voltage, leakage current, capacitance, battery status and time constant. In addition, the elapsed time of the test is displayed constantly removing the need for separate timer.

‍

• Measures up to 30 TΩ
• PI, DAR, DD, SV and ramp test
• Improved productivity – operate from line power/mains if battery dead

‍

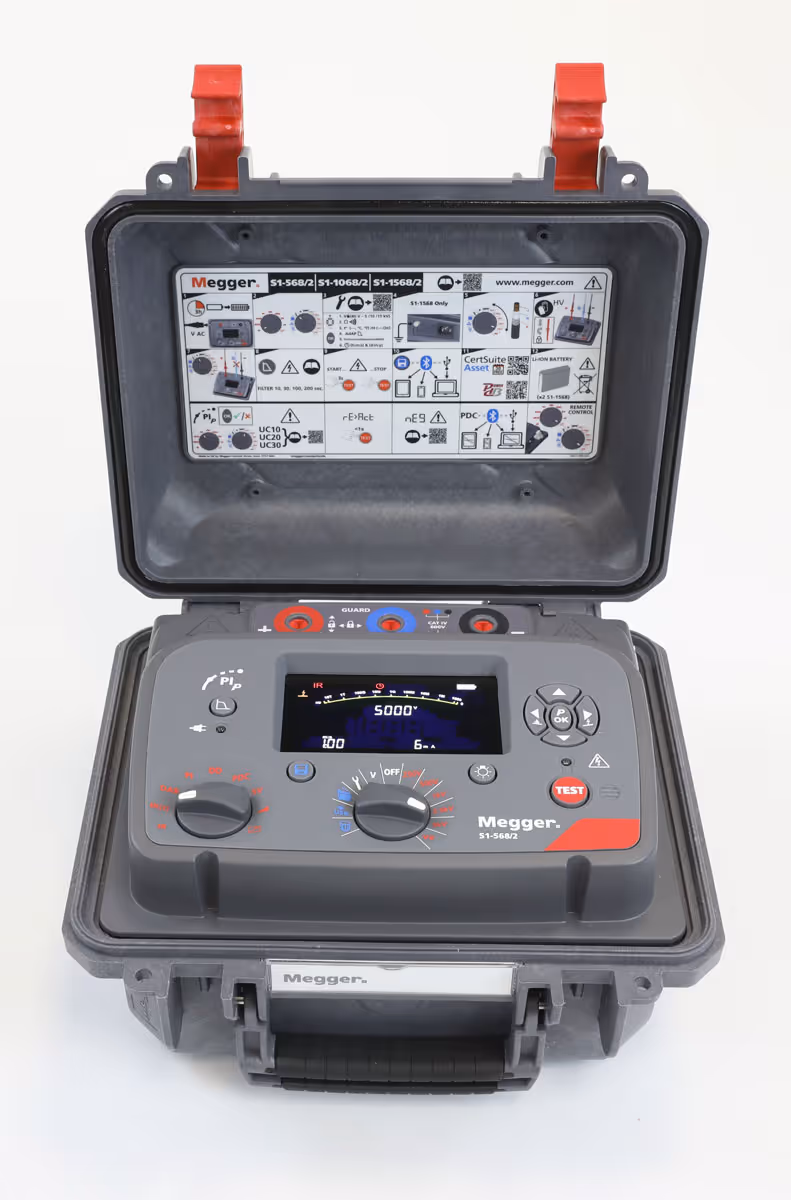

Megger's new S1-568 5 kV insulation resistance tester has been specially developed for the toughest of Power Industry testing environments and for the largest of test samples / longest of cables. These top end instruments are targeted at power utilities and service companies working in generation, transmission and distribution markets where extra heavy duty is called for! The S1-568's class-leading charge current (6 mA!), noise rejection (8 mA rejection!), and four software filters (10, 30, 100, and 200 seconds) make the S1-Series Megger's most advanced DC insulation resistance testers to date. Naturally, it is Cat 4 600V, has remote operation via USB, USB or Bluetooth download, comes with the acclaimed Megger PowerDB Lite asset managment software, has rapid-charge Li-ion batteries with 6 hour operation off a charge, and does all the tests you would expect for the biggest of cables, motors, generators, circuit breakers, and bushings. In all, the ultimate 5 kV tester!!

• Resistance measurement: 15 TΩ - 5 kV
• High current – 6 mA short circuit current, 2 mA charge current
• High noise immunity – 8 mA of noise rejection
• Four software filters: 10s, 30s, 100s, 200s
• Li-ion battery – charges in 2 hours and gives up to 6 hours continuous testing a 100 MΩ load (S1-568), battery meets IEC 62133
• CATIV 600 V safety rating
• High performance, 8 mA noise rejection, 4 digital filter options
• Compact and light weight
• Tough dual case design
• Rapid charge Li-ion battery – meets IEC62133

Megger's new S1-1068 10 kV insulation resistance tester has been specially developed for the toughest of Power Industry testing environments and for the largest of test samples / longest of cables. These top end instruments are targeted at power utilities and service companies working in generation, transmission and distribution markets where extra heavy duty is called for! The S1-1068's class-leading charge current (6 mA!), noise rejection (8 mA rejection!), and four software filters (10, 30, 100, and 200 seconds) make the S1-Series Megger's most advanced DC insulation resistance testers to date. Naturally, it is Cat 4 600V, has remote operation via USB, USB or Bluetooth download, comes with the acclaimed Megger PowerDB Lite asset managment software, has rapid-charge Li-ion batteries with 6 hour operation off a charge, and does all the tests you would expect for the biggest of cables, motors, generators, circuit breakers, and bushings. In all, the ultimate 10 kV tester!!

• Resistance measurement: 15 TΩ - 5 kV, 35 TΩ - 10 kV
• High current – 6 mA short circuit current, 2 mA charge current
• High noise immunity – 8 mA of noise rejection
• Four software filters: 10s, 30s, 100s, 200s
• Li-ion battery – charges in 2 hours and gives up to 6 hours continuous testing a 100 MΩ load (S1-568), battery meets IEC 62133
• CATIV 600 V safety rating
• High performance, 8 mA noise rejection, 4 digital filter options
• Compact and light weight
• Tough dual case design
• Rapid charge Li-ion battery – meets IEC62133
• Operate with flat battery from an AC source

‍
