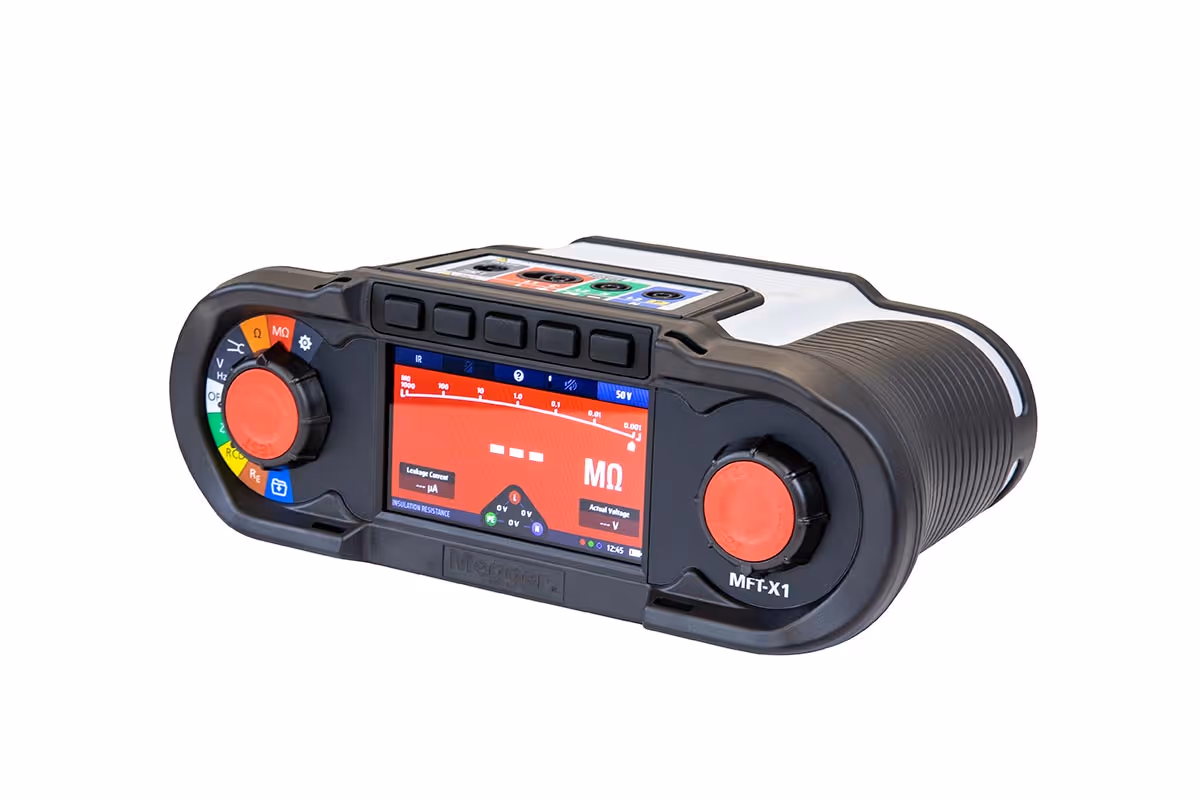

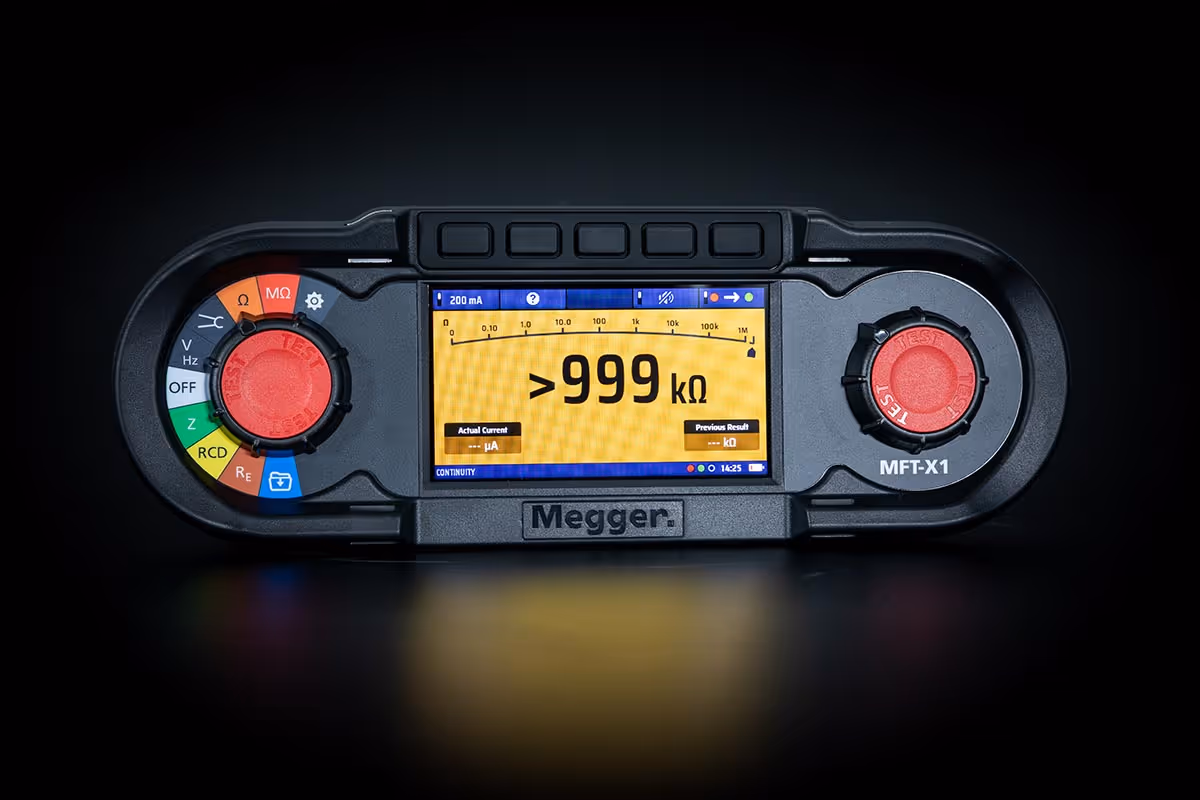

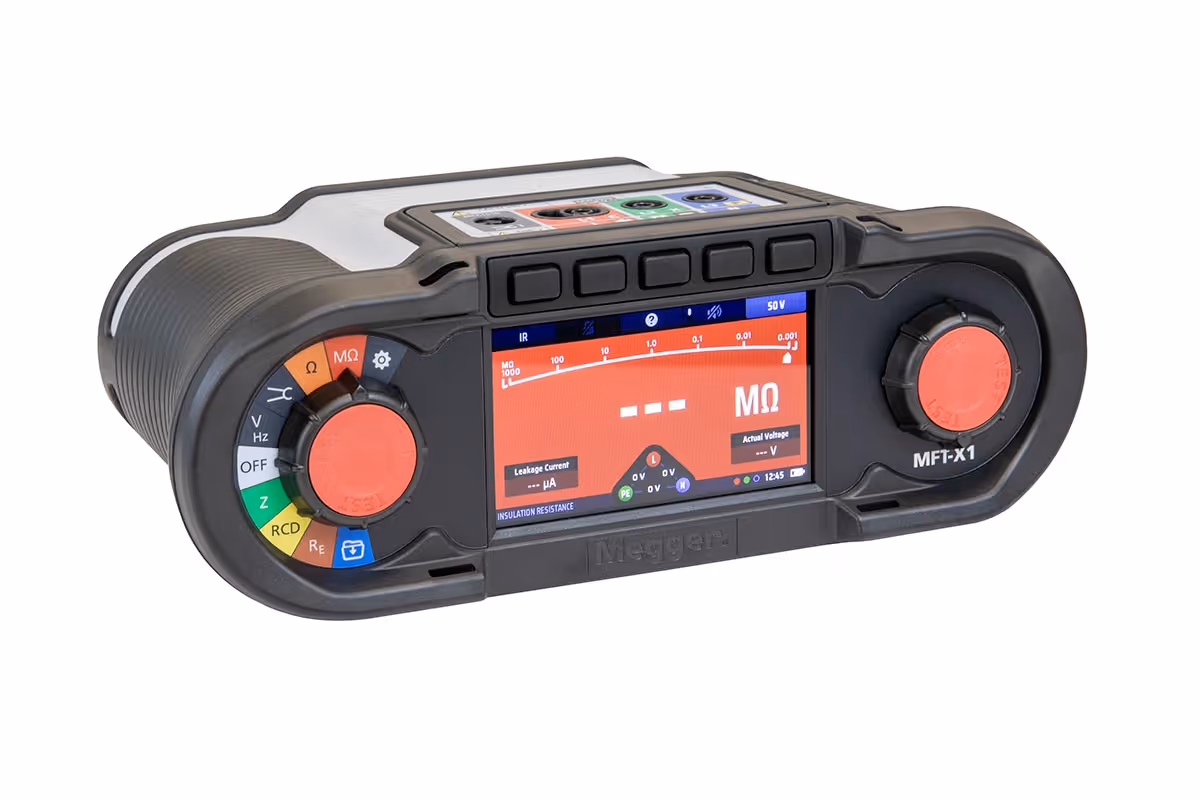

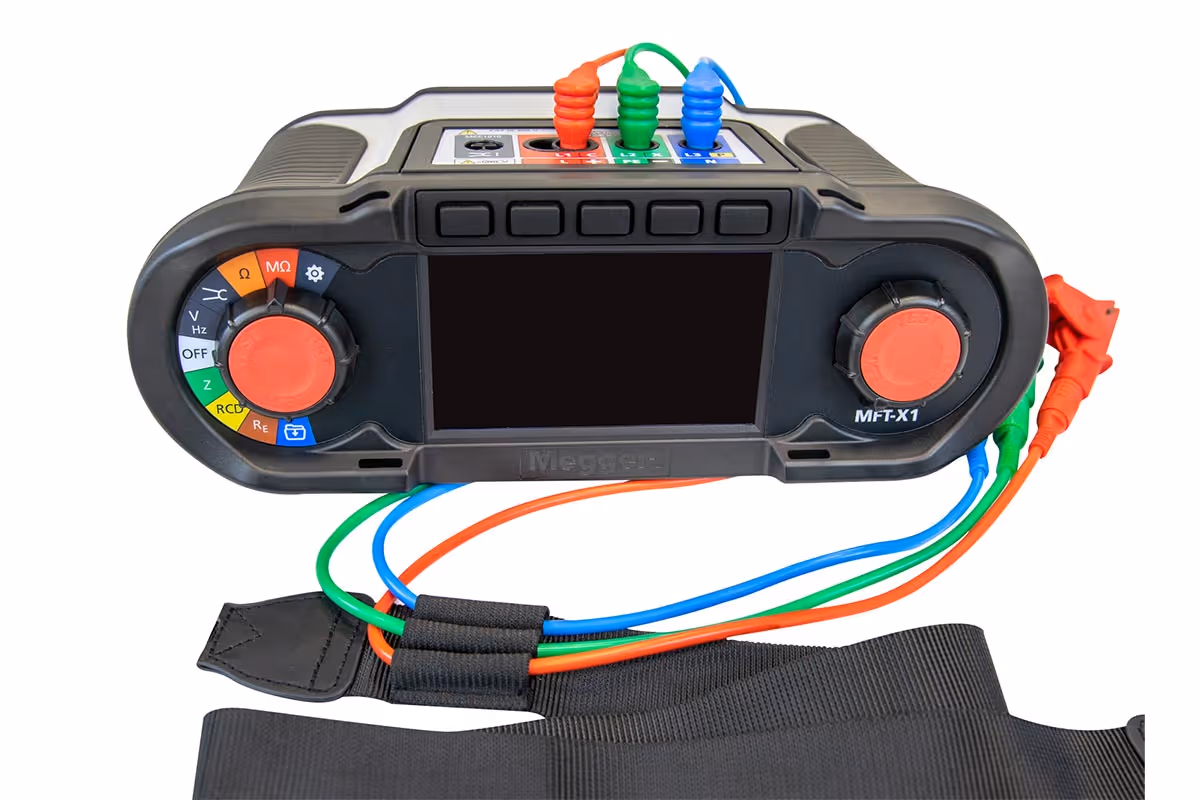

The UK designed and built MFT-X1, introduces the first generation of platform based Multifunction electrical installation testers to the Megger MFT range.

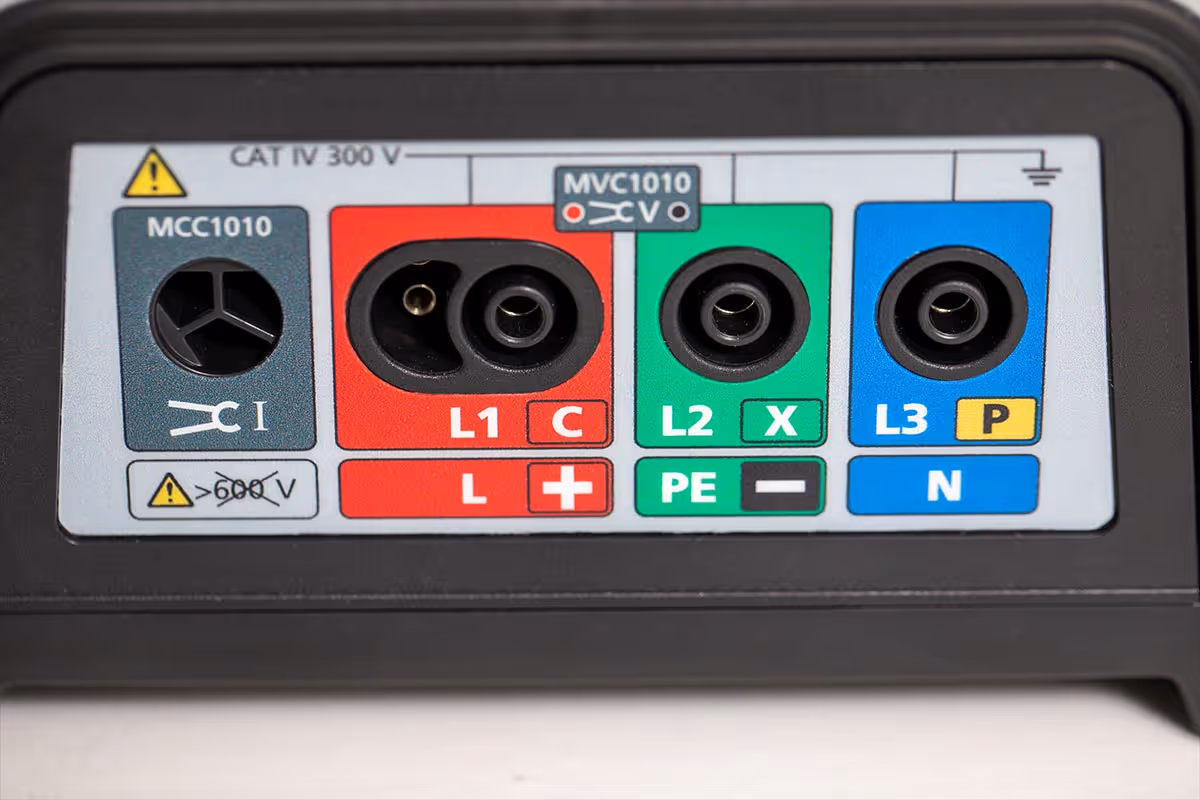

Rated to CATIV 300 V, the MFT-X1 is designed for use on all single or 3-phase domestic, commercial and industrial electrical installations. The range of individual tests allow the user to complete all the electrical commissioning, routine maintenance and reporting/certification requirements for an installation, as well as aid detailed fault diagnostics.

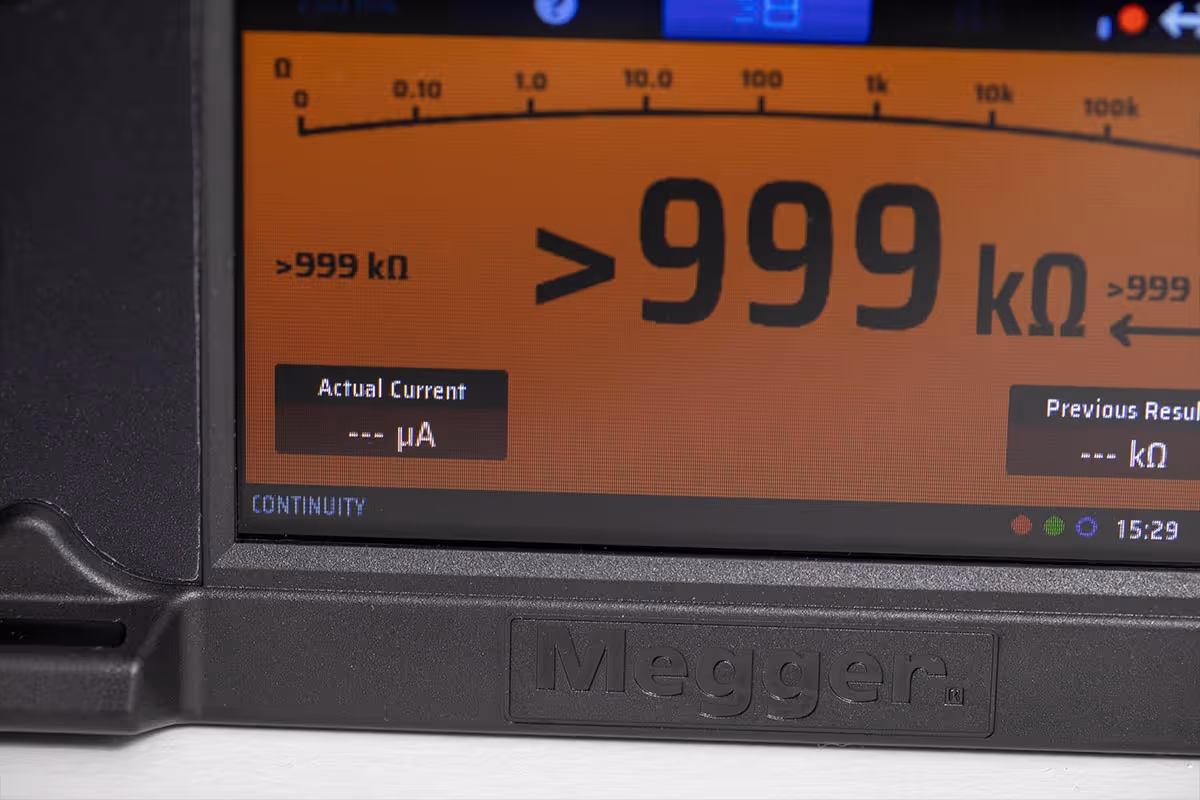

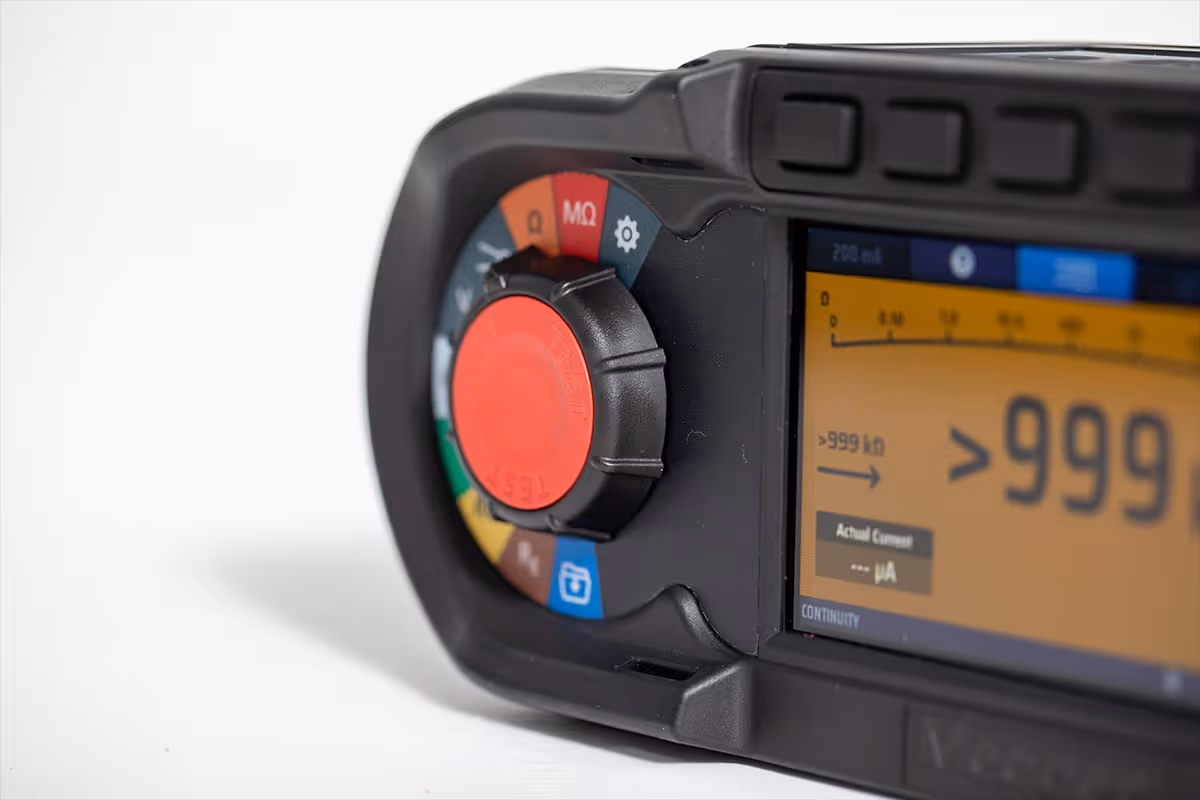

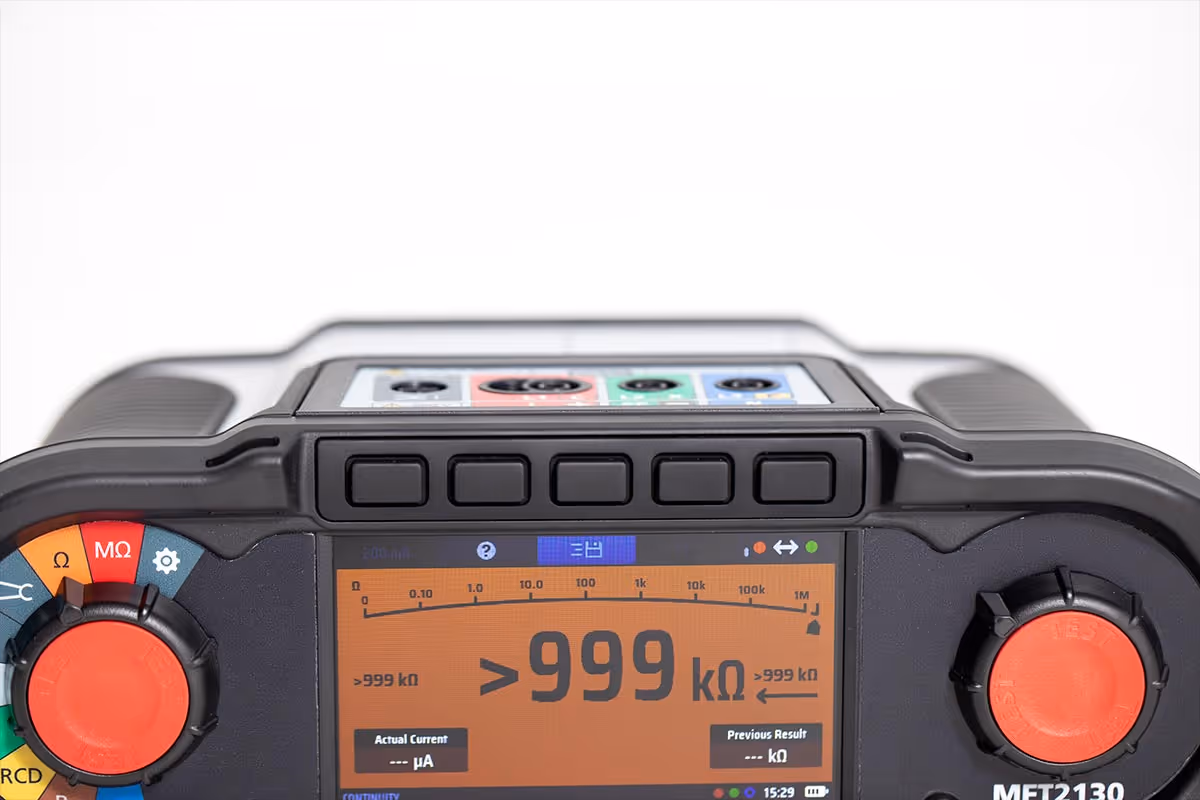

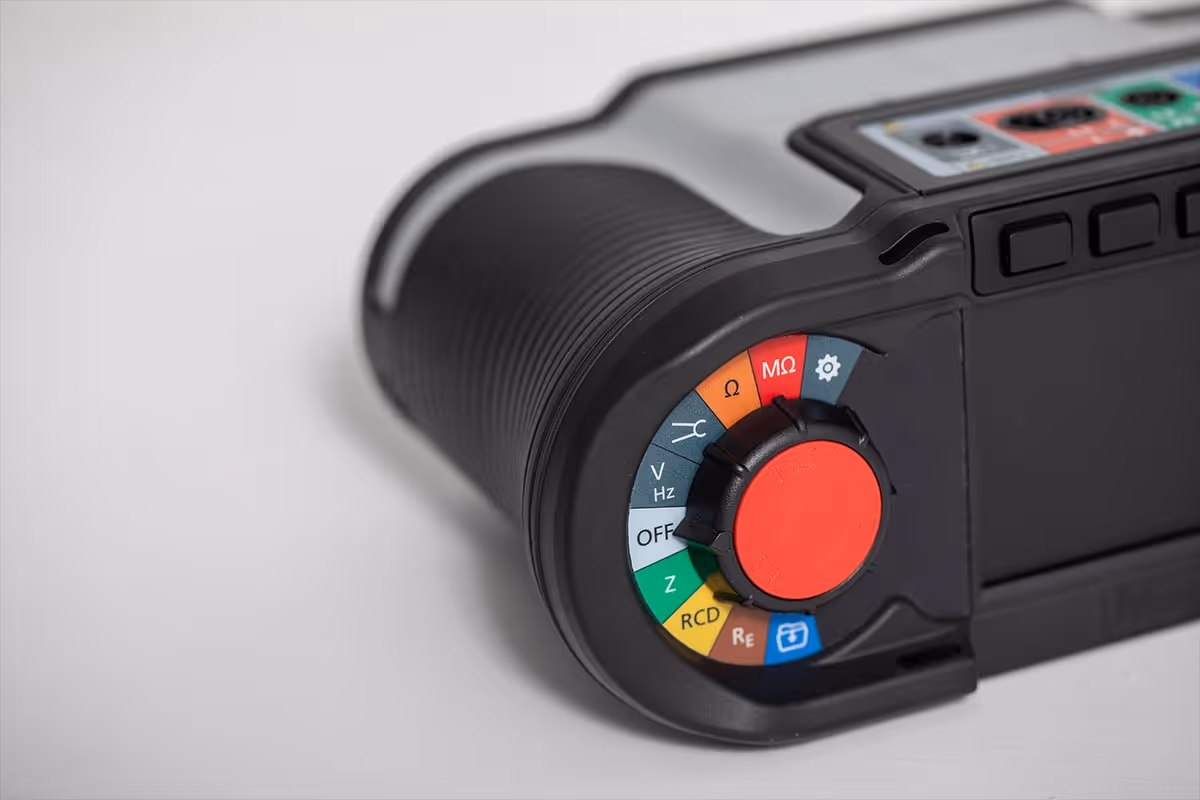

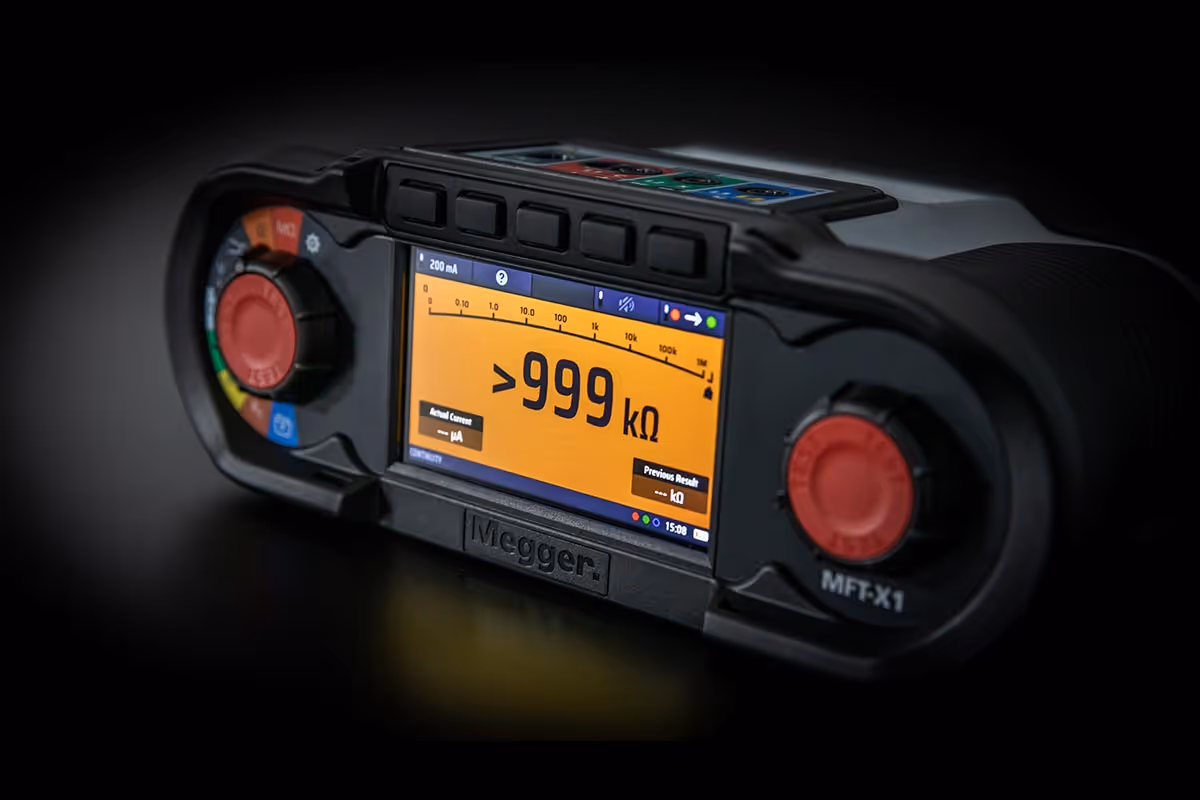

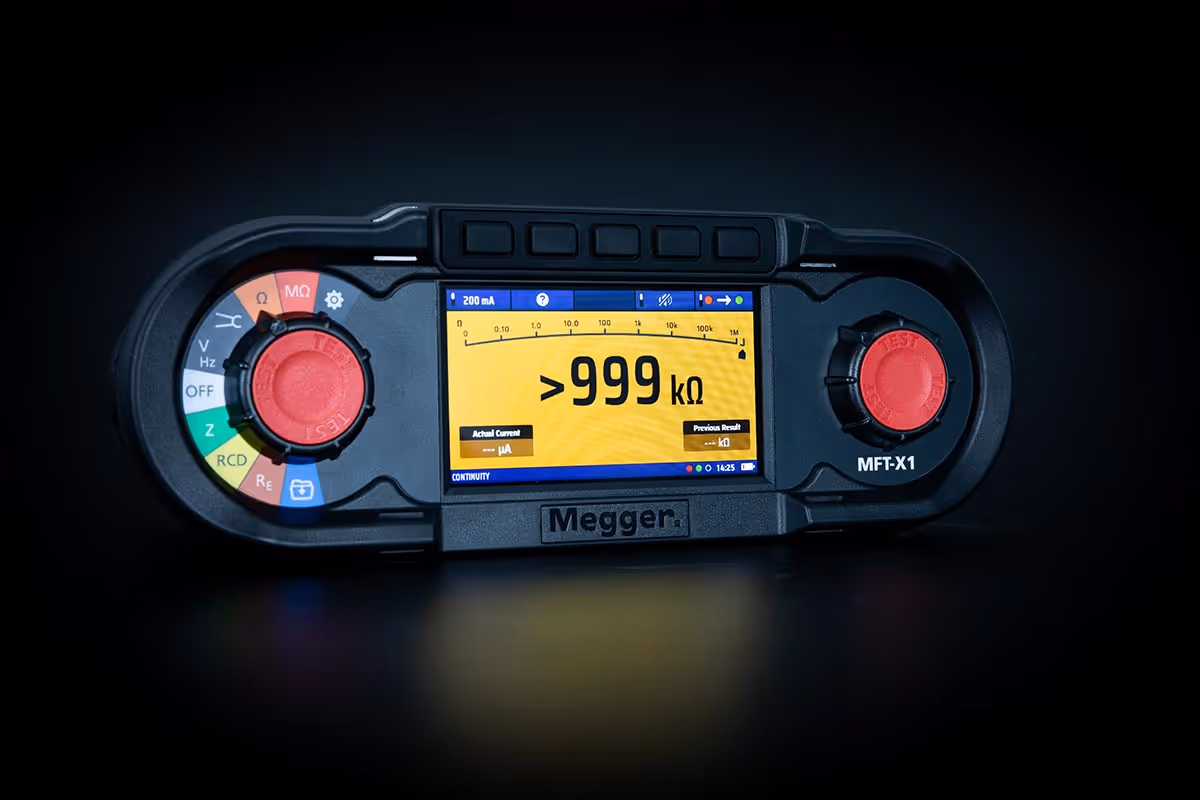

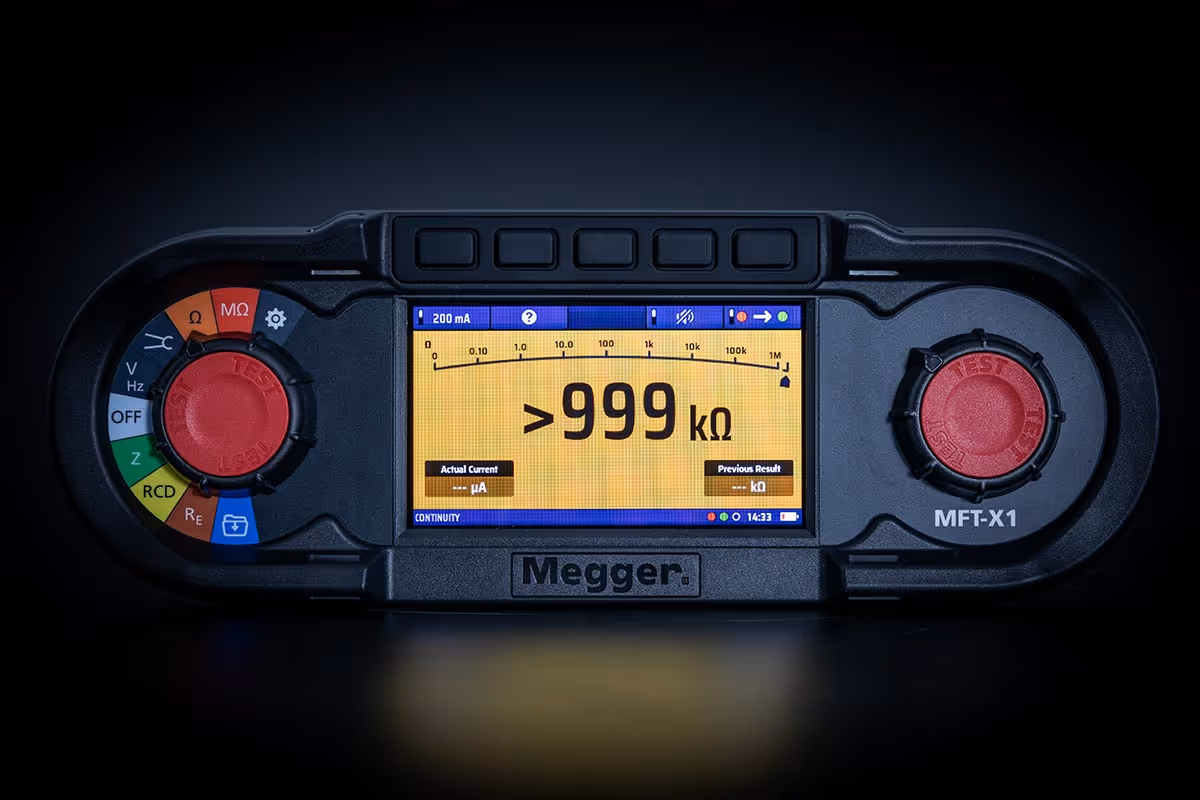

Not only have we redesigned the physical interface of the product for ease of use, we've created a more intuitive working experience. Enhancing the colour coded test selection rotary dial, range selection is now replicated on the instrument screen, ensuring easy use in poor lighting environments.
Save yourself hours of operational work by combining the MFTX1 with Certsuite™, which makes reporting and certificating whilst on the job a breeze! Test results can be transferred directly to any test certificate or report via the CertSuite™ App.
The MFT-X1 is just the start! Using a standard microSD card, you will be able to remotely upgrade firmware and other features without having to purchase a new unit.
True Loop™ impedance testing is now a standard feature on the MFT-X1. The latest 3-wire non-trip loop testing technology, incorporated with the patented Confidence Meter™, offers an unmatched, reliable, accurate, stable and repeatable loop test solution.
The MFT-X1 now includes a high resolution, high current, 2-wire loop impedance test that, with the integration of the Confidence Meter™, provides accurate measurements down to 0.001Ω resolution, with PFC/PSCC current calculation up to 50 kA.
For the first time in any multifunction tester, the MFT-X1 incorporates a stabilised insulation test voltage, ensuring output voltage is accurate to within +/-3% +2 digits. This compares to the industry standard of +20%.
