Megger's New SMRT46/D Multi-phase Relay Test System expands your testing abilities by adding a 4th voltage channel, giving you another game-changing tool to help you get your job done faster and more efficiently.

A fourth voltage channel can provide a synchronizing reference voltage, or serve as a battery simulator.  With the voltage channels converted to currents, a three channel unit can provide 6 currents for testing three phase current differential relays, including harmonic restraint transformer differential relays

The added capabilites of the SMRT46D can be expanded upon even further when paired with Megger's full family of SMRT Relay Test Sets.  Our SMRT Relay Test Sets are designed to work together, allowing you to combine multiple units to ensure our test sets will meet your every need, regarless of the application.

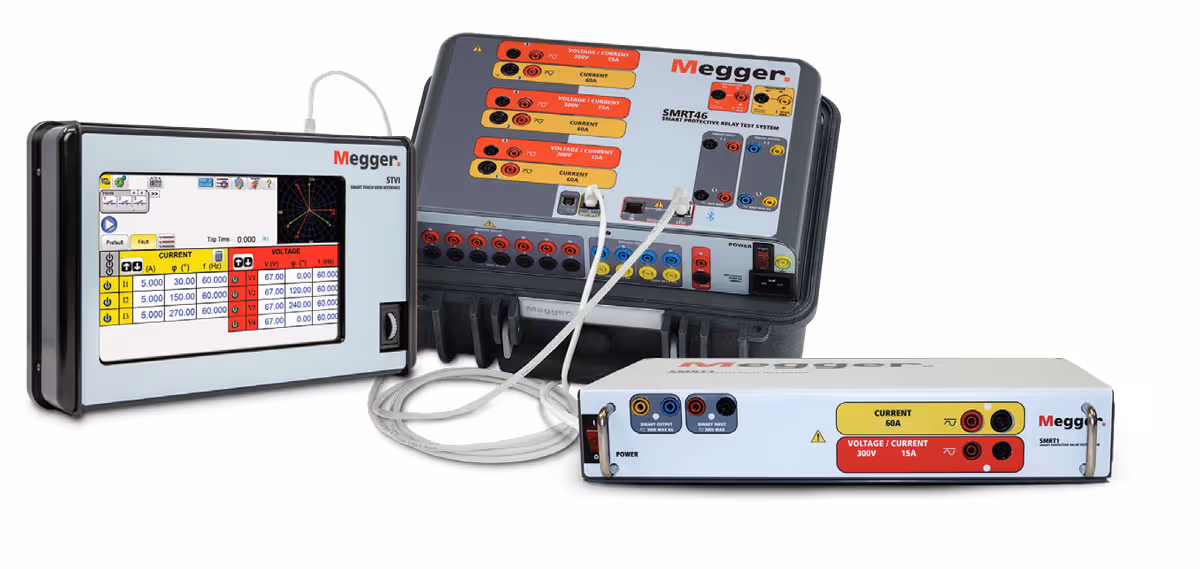

All of this functionality can be controlled either manually via the built-in touch-screen user interface on the SMRT46D, or placed under full computer control via the AVTS, Advanced Visual Testing Software, or the RTMS, Relay Test Management Software, running on a PC. The built-in user interface, called the Smart Touch-View Interface™, is Megger’s second generation of automatic / semi-automatic manual user interface running the new RTMS software.

‍

• Integrated Smart Touch View Interface™ provides stand-alone operation using intuitive high resolution graphic touchscreen, no PC required to operate

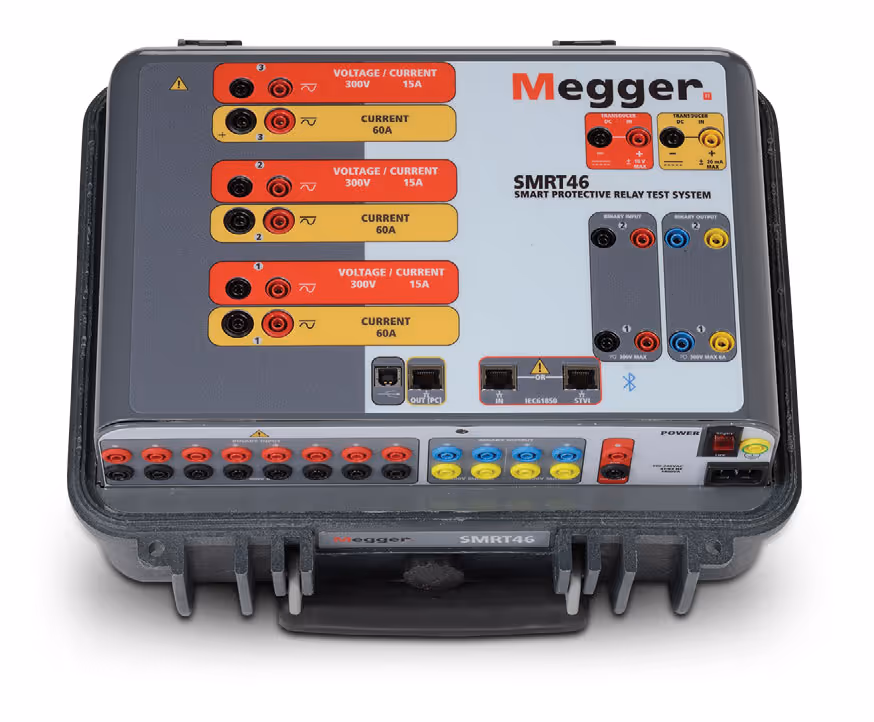

•  4 Voltage channels, 3 Current channels, with convertible voltage channels provides 1 voltage and 6 currents
•  High current output - 60 Amps at 300 VA per phase
•  Convertible voltage channels – 15 Amps at 120 VA
•  Dynamic, Transient and GPS Satellite Synchronized End-to-End Testing Capability
•  IEC 61850 Testing Capability

‍
